DNS configuration guide

Intermediate
Tutorial

This guide explains how to configure the DNS records of your domain for three popular registrars: Namecheap, GoDaddy, and Amazon Route 53.

The steps in this guide are prerequisites to using a custom domain. You must complete this DNS configuration before following the "using custom domains" guide.

To illustrate these required configurations, the apex domain ic-domain.live and the subdomain example.ic-domain.live are used.

Replace ic-domain.live with your own domain, such as my-website.com.

Namecheap​

Below are the steps to configure the apex of a domain and a subdomain on Namecheap to be used as a custom domain for a canister deployed on ICP.

  • Step 1: After purchasing your domain on Namecheap, open the management panel of your domain in the Namecheap dashboard.​

  • Step 2: Open the Advanced DNS tab.​

Apex​

To configure the apex of the domain (e.g., ic-domain.live), add the following records by clicking on Add new record:

  • Create an ALIAS record for which you set the host field to @ and the target field to ic-domain.live.icp1.io.

  • Create a CNAME record for which you set the host field to _acme-challenge and the target field to _acme-challenge.ic-domain.live.icp2.io.

  • Create a TXT record for which you set the host field to _canister-id and the value field to the canister ID y5jqt-wqaaa-aaaam-abcoq-cai.

The resulting configuration should look similar to the following screenshot:

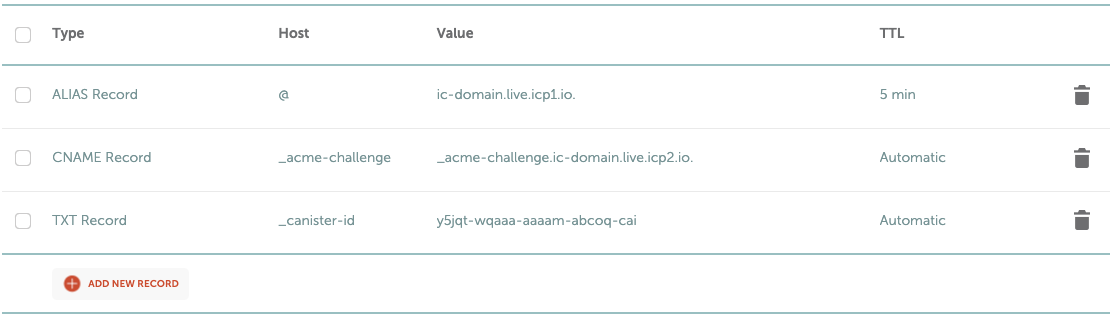

DNS Configuration for `ic-domain.live` on Namecheap

Subdomain​

To configure a subdomain (e.g., example.ic-domain.live), add the following records by clicking on Add new record:

  • Create an ALIAS record for which you set the host field to example and the target field to example.ic-domain.live.icp1.io.

  • Create a CNAME record for which you set the host field to _acme-challenge.example and the target field to _acme-challenge.example.ic-domain.live.icp2.io.

  • Create a TXT record for which you set the host field to _canister-id.example and the value field to the canister ID y5jqt-wqaaa-aaaam-abcoq-cai.

The resulting configuration should look similar to the following screenshot:

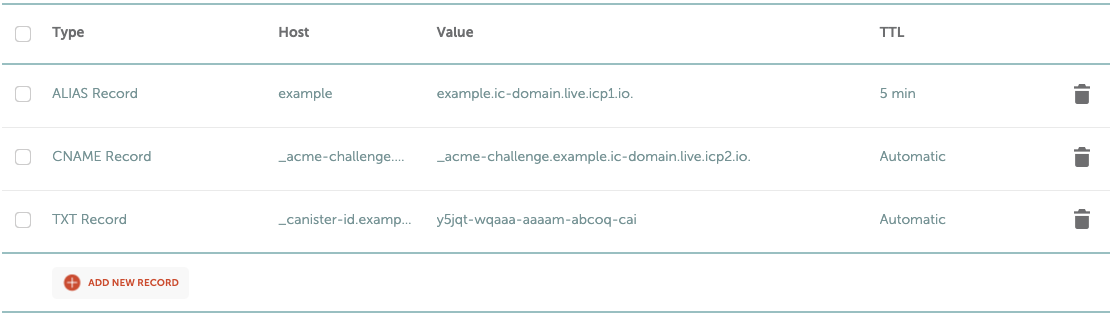

DNS Configuration for `example.ic-domain.live` on Namecheap

Now, you are all set to register your custom domain with the HTTP gateways, and you can continue with step 2 of the general custom domains instructions.

GoDaddy​

Below are the steps to configure the apex of a domain and a subdomain on GoDaddy to be used as a custom domain for a canister deployed on ICP.

  • Step 1: After purchasing your domain on GoDaddy, open your account and navigate to My Products.​

  • Step 2: Click on the DNS button next to the domain.​

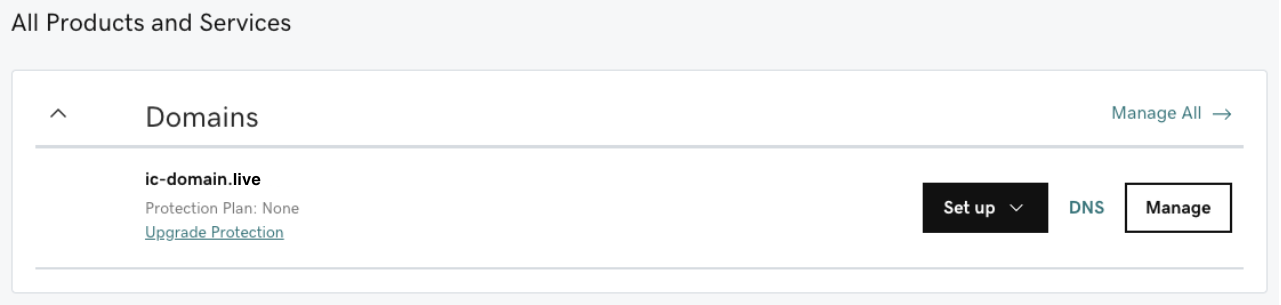

Domain Management Overview

Apex​

Unfortunately, GoDaddy does not support configuring a CNAME record (or one of its alternatives, ALIAS or ANAME) for the apex of the domain; you need to make use of a workaround.

There are two options:

Directly configuring the IP addresses is simpler compared to relying on another DNS provider, but is less resilient and performant. Therefore, it is advised to use a different DNS provider (e.g., Cloudflare or Route 53).

It is explained in this approach using Cloudflare as a DNS provider. It works similarly with any other DNS provider that supports CNAME, ALIAS, or ANAME records for the apex of a domain.

  • Step 1: Create a free account with Cloudflare; click on Add site in the top bar of the dashboard.​

  • Step 2: Enter your domain (e.g., ic-domain.live) and click Add site.​

  • Step 3: Choose the free plan and continue.​

  • Step 4: In the next step, Cloudflare lists two nameservers that you should configure GoDaddy to use.​

    Take note of the two nameservers (e.g., brianna.ns.cloudflare.com and kaiser.ns.cloudflare.com) provided by Cloudflare.

  • Step 5: In the DNS Management panel of GoDaddy, remove all DNS entries on GoDaddy.​

    Go back to your DNS settings on GoDaddy and make sure to remove all the DNS entries that GoDaddy created.

  • Step 6: Click on the Change button in the Nameservers section.​

  • Step 7: In the dialog that opened, click on Enter my own nameservers (advanced) and fill in the nameservers from Cloudflare in the provided fields.​

To finish, click on Save.

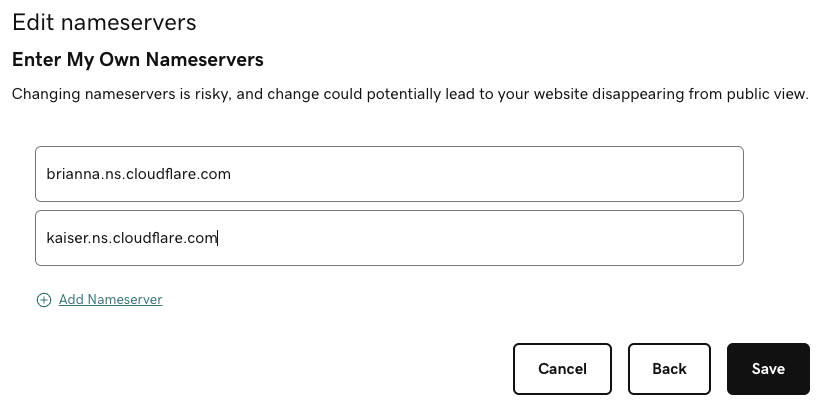

GoDaddy's dialog to configure the nameservers

  • Step 8: Confirm in the dialog that you indeed intend to change the nameservers.​

    The resulting configuration should look similar to the following screenshot:

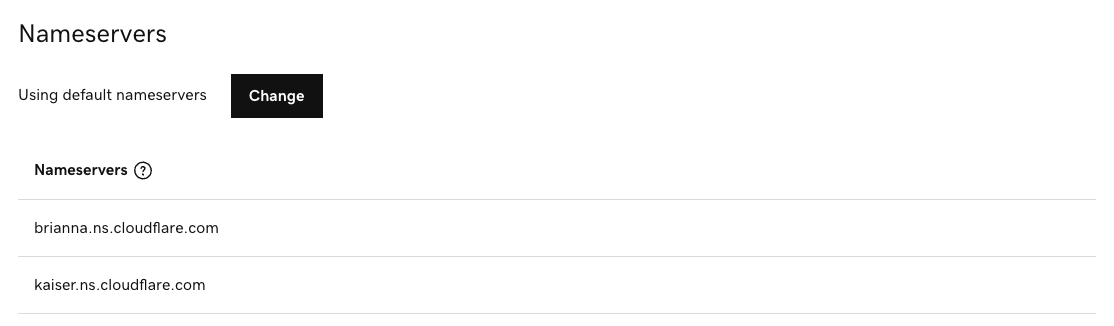

Alternative nameserver configuration on GoDaddy

  • Step 9: Back in the Cloudflare management portal, click on Done, check nameservers.​

This step can take several hours, and you will be notified by email once it succeeded.

  • Step 10: On Cloudflare, add the following records to configure your domain:​

    • Create a CNAME record for which you set the name field to @ and the target field to ic-domain.live.icp1.io.

    • Create a CNAME record for which you set the host field to _acme-challenge and the target field to _acme-challenge.ic-domain.live.icp2.io.

    • Create a TXT record for which you set the name field to _canister-id and the content field to the canister ID y5jqt-wqaaa-aaaam-abcoq-cai.

The resulting configuration should look similar to the following screenshot:

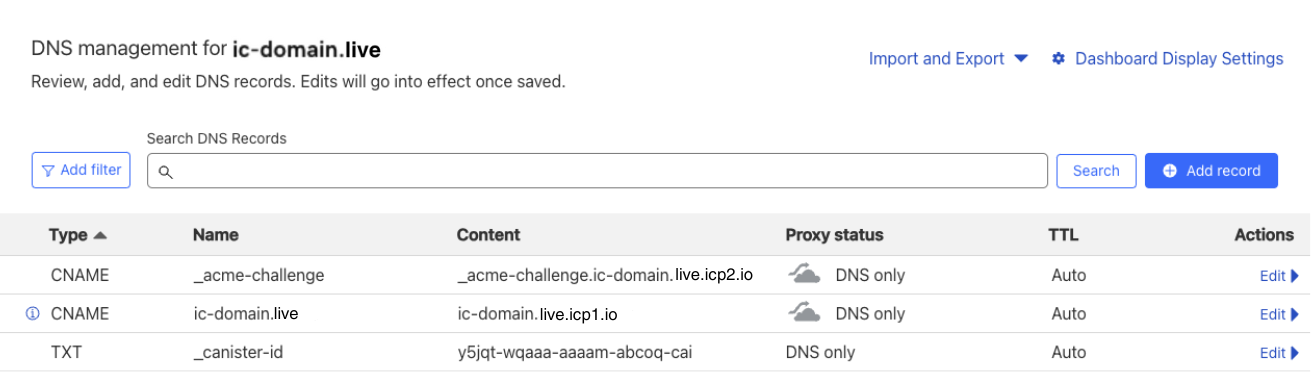

DNS Configuration for `ic-domain.live` on Cloudflare

By directly configuring the IP addresses of the HTTP gateways, you always need to make sure to keep your DNS records up-to-date. If a HTTP gateway is retired or changes its IP addresses, you need to remove or update your DNS records. Otherwise, you risk that your dapp becomes inaccessible.

  • Step 1: First, you need to look up the IP addresses of the HTTP gateways (icp1.io).​

    To this end, use an online DNS lookup service (e.g., nslookup.io) and take a note of the IPv4- and IPv6-addresses, the A and AAAA records, respectively.

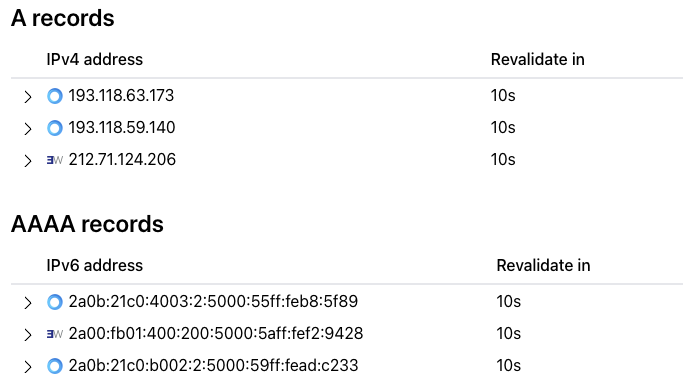

Resulting `A` and `AAAA` records from querying `icp1.io` on nslookup.io

  • Step 2: In the DNS Management panel in your GoDaddy account, add the following DNS records:​

    • Create an A record for each IPv4 address by setting the name field to "@" and the value field to the IPv4 address (e.g., 193.118.63.173).

    • Create an AAAA record for each IPv6 address by setting the name field to "@" and the value field to the IPv6 address (e.g., 2a0b:21c0:b002:2:5000:59ff:fead:c233).

    • Create a CNAME record for which you set the name field to _acme-challenge and the value field to _acme-challenge.ic-domain.live.icp2.io.

    • Create a TXT record for which you set the name field to _canister-id and the value field to the canister ID y5jqt-wqaaa-aaaam-abcoq-cai.

The resulting configuration should look similar to the following screenshot:

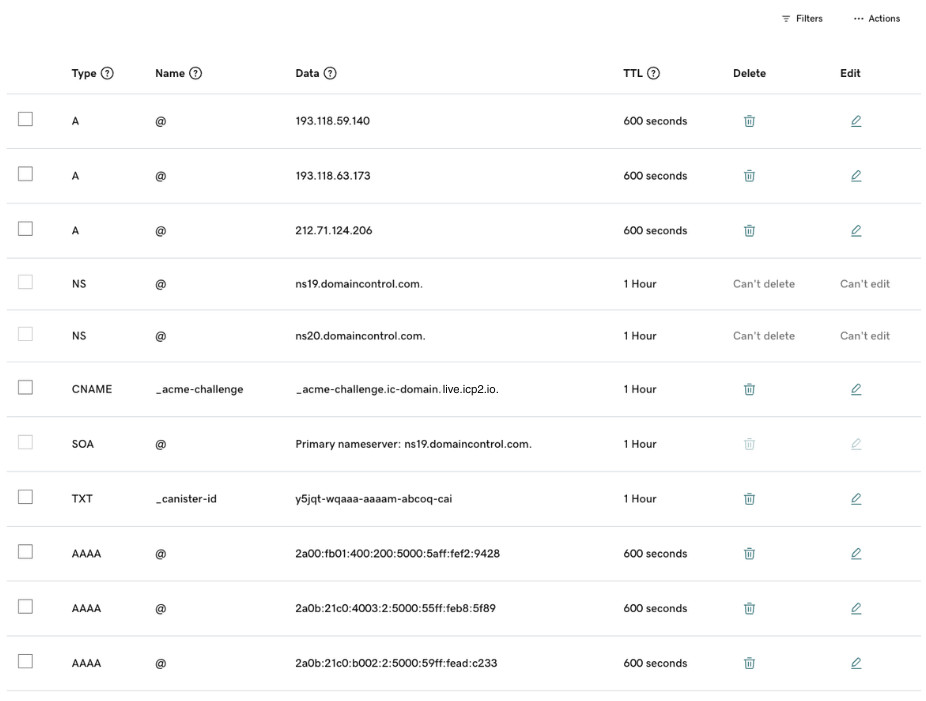

DNS Configuration for `ic-domain.live` on GoDaddy

Subdomain​

To configure a subdomain (e.g., example.ic-domain.live), add the following records by clicking on Add new record:

  • Create a CNAME record for which you set the host field to example and the target field to example.ic-domain.live.icp1.io.

  • Create a CNAME record for which you set the host field to _acme-challenge.example and the target field to _acme-challenge.example.ic-domain.live.icp2.io.

  • Create a TXT record for which you set the host field to _canister-id.example and the value field to the canister ID y5jqt-wqaaa-aaaam-abcoq-cai.

The resulting configuration should look similar to the following screenshot:

DNS Configuration for `example.ic-domain.live` on GoDaddy

Now, you are all set to register your custom domain with the HTTP gateways, and you can continue with step 2 of the general custom domains instructions.

Amazon Route 53​

Below are the steps to configure the apex of a domain and a subdomain on Amazon Route 53 to be used as a custom domain for a canister deployed on ICP.

Apex​

Unfortunately, Amazon Route 53 does not support configuring a CNAME record (or one of its alternatives, ALIAS or ANAME) for the apex of the domain. You need to make use of a workaround. For instructions, take a look at the steps outlined for GoDaddy under "Rely on an alternative DNS provider".

Subdomain​

  • Step 1: After purchasing your domain on Route 53, navigate to Hosted zones and click on your domain.​

  • Step 2: Click on the domain to open the DNS settings.​

  • Step 3: Configure your DNS records.​

    To configure a subdomain (e.g., example.ic-domain.live), add the following records by clicking on Create record:

  • Create a CNAME record for which you set the host field to example and the target field to example.ic-domain.live.icp1.io.

  • Create a CNAME record for which you set the host field to _acme-challenge.example and the target field to _acme-challenge.example.ic-domain.live.icp2.io.

  • Create a TXT record for which you set the host field to _canister-id.example and the value field to the canister ID y5jqt-wqaaa-aaaam-abcoq-cai.

The resulting configuration should look similar to the following screenshot:

DNS Configuration for `example.ic-domain.live` on Amazon Route 53

Now, you are all set to register your custom domain with the HTTP gateways, and you can continue with step 2 of the general custom domains instructions.
